Pro Integrated Amplifier
What exactly is an amplifier?
An amplifier is an electrical component that increases a signal, usually by increasing the voltage and the current.
What does it mean to operate an amplifier in Bridge Mode as opposed to Stereo Mode?
Frequently amplifiers will operate in two modes, Bridge mode or Stereo mode. When an amplifier is operating in Stereo mode each channel is functioning independently, with a single input powering a single channel. Bridge mode, also referred to as parallel mode, combines two output channels which are powered by a single input. This will result in a voltage output twice that of an individual channel operating in Stereo mode.
Which Technical Pro Amplifiers can operate in either Bridge or Stereo mode?
Technical Pro offers multiple amplifiers which function in either Bridge or Stereo mode. Currently every model in the L-Series and Slimpro Series is bridgeable. Additionally, the PP-2000 and PP-3000 are available in Bridge or Stereo mode.
What is the difference between a crossover and low-pass filter?
A typical speaker can’t properly drive all the sounds in the audio spectrum. A crossover takes the signal and separates it into frequency bands, low frequencies, mid frequencies and high frequencies. A low-pass filter, which can be found on the Sub and Nuke subwoofers, eliminates or cuts off the high frequencies allowing only low frequencies to continue to the subwoofer. A low-pass filter is typically adjustable allowing the user to choose which frequencies to continue to the subwoofer.
What is a Frequency Response?
The frequency response is the range in Hertz (Hz) that a device can reproduce versus amplitude. The widely accepted frequency range of human hearing is 20Hz-20kHz.
What does impedance measure?
Stated in ohms, impedance measures the resistance of a device to an Alternating Current (AC). Put simply, it measures how easily a device will conduct a current.
What is Sensitivity?
Sensitivity is the minimum power an amplifier must supply to a speaker so the speaker can produce satisfactory volume ratings.
How do I hook up speakers to the amp?
On the rear of every amplifier there are either one or multiple output jacks. The outputs vary by model, but typically will be in the form of RCA, Speakon, Balanced XLR, and Banana binding post. Simply choose the output type on your amplifier and connect it to the input on your speaker.
What exactly is the Hybrid amplifier and what makes it so special?
The Hybrid is the all in one solution for any user. Whether you’re looking for a home receiver or a power amp to power up to four speakers in your club, the Hybrid is up to the task. It’s the versatility of the Hybrid that makes it so unique. The Hybrid is a four channel amplifier with a built-in tuner, preamp, mic, mixer and crossover. Having all these features built-into one sleek package puts the Hybrid in a class above the rest.
When hooking up an amplifier to a PC the volume is very low, why?
In this particular case, when hooking up an amplifier to a PC, the volume is being controlled by the computer speakers. Therefore to adjust the volume, the user must adjust the volume on the actual speaker and not on the amplifier.
If an amplifier goes into “Clip Mode”, how long should I wait before turning it on again?
If your amplifier goes into “Clip Mode” typically waiting 2-3 minutes before turning it on again is suffice.
When loading amplifiers into a Rack, how much space should be left between each amplifier to allow the amplifier to “breathe”?
All Technical Pro amplifiers, with the exception of the Slimpro, and vented and cooled from the back, so rack spacing should not be an issue so long as the back of the amplifier is not covered. The Slimpro amplifier vents from the roof of the unit and therefore about .5 inches should be left exposed on the top of the amplifier.
What is the difference between Technical Pro’s Powered and Passive Speakers?
A powered speaker is just like a passive speaker with one important exception, a built-in amplifier. With a built-in amplifier you can connect your source (ex. CD player) to a preamp and then straight to your speaker. The amplifier in the speaker will then drive the sound.
Can an iPod be connected to any of the Technical Pro amplifiers?
Yes, many if not all products work with iPod just check to see if it has a aux input and your all set!
When you purchase something from our store, as part of the buying and selling process, we collect the personal information you give us such as your name, address and email address.
When you browse our store, we also automatically receive your computer’s internet protocol (IP) address in order to provide us with information that helps us learn about your browser and operating system.
Email marketing (if applicable): With your permission, we may send you emails about our store, new products and other updates.
SECTION 2 - CONSENT
How do you get my consent?
When you provide us with personal information to complete a transaction, verify your credit card, place an order, arrange for a delivery or return a purchase, we imply that you consent to our collecting it and using it for that specific reason only.
If we ask for your personal information for a secondary reason, like marketing, we will either ask you directly for your expressed consent, or provide you with an opportunity to say no.
How do I withdraw my consent?
If after you opt-in, you change your mind, you may withdraw your consent for us to contact you, for the continued collection, use or disclosure of your information, at anytime, by contacting us at email@example.com or mailing us at:
9 Kilmer Ct Edison NJ 08817
SECTION 3 - DISCLOSURE
We may disclose your personal information if we are required by law to do so or if you violate our Terms of Service.
SECTION 4 - SHOPIFY
Our store is hosted on Shopify Inc. They provide us with the online e-commerce platform that allows us to sell our products and services to you.
Your data is stored through Shopify’s data storage, databases and the general Shopify application. They store your data on a secure server behind a firewall.
If you choose a direct payment gateway to complete your purchase, then Shopify stores your credit card data. It is encrypted through the Payment Card Industry Data Security Standard (PCI-DSS). Your purchase transaction data is stored only as long as is necessary to complete your purchase transaction. After that is complete, your purchase transaction information is deleted.
All direct payment gateways adhere to the standards set by PCI-DSS as managed by the PCI Security Standards Council, which is a joint effort of brands like Visa, MasterCard, American Express and Discover.
PCI-DSS requirements help ensure the secure handling of credit card information by our store and its service providers.
For more insight, you may also want to read Shopify’s Terms of Service (https://www.shopify.com/legal/terms) or Privacy Statement (https://www.shopify.com/legal/privacy).
SECTION 5 - THIRD-PARTY SERVICES
In general, the third-party providers used by us will only collect, use and disclose your information to the extent necessary to allow them to perform the services they provide to us.
However, certain third-party service providers, such as payment gateways and other payment transaction processors, have their own privacy policies in respect to the information we are required to provide to them for your purchase-related transactions.
For these providers, we recommend that you read their privacy policies so you can understand the manner in which your personal information will be handled by these providers.
In particular, remember that certain providers may be located in or have facilities that are located a different jurisdiction than either you or us. So if you elect to proceed with a transaction that involves the services of a third-party service provider, then your information may become subject to the laws of the jurisdiction(s) in which that service provider or its facilities are located.
As an example, if you are located in Canada and your transaction is processed by a payment gateway located in the United States, then your personal information used in completing that transaction may be subject to disclosure under United States legislation, including the Patriot Act.
When you click on links on our store, they may direct you away from our site. We are not responsible for the privacy practices of other sites and encourage you to read their privacy statements.
SECTION 6 - SECURITY
To protect your personal information, we take reasonable precautions and follow industry best practices to make sure it is not inappropriately lost, misused, accessed, disclosed, altered or destroyed.
If you provide us with your credit card information, the information is encrypted using secure socket layer technology (SSL) and stored with a AES-256 encryption. Although no method of transmission over the Internet or electronic storage is 100% secure, we follow all PCI-DSS requirements and implement additional generally accepted industry standards.
SECTION 7 - COOKIES
Here is a list of cookies that we use. We’ve listed them here so you that you can choose if you want to opt-out of cookies or not.
_session_id, unique token, sessional, Allows Shopify to store information about your session (referrer, landing page, etc).
_shopify_visit, no data held, Persistent for 30 minutes from the last visit, Used by our website provider’s internal stats tracker to record the number of visits
_shopify_uniq, no data held, expires midnight (relative to the visitor) of the next day, Counts the number of visits to a store by a single customer.
cart, unique token, persistent for 2 weeks, Stores information about the contents of your cart.
_secure_session_id, unique token, sessional
storefront_digest, unique token, indefinite If the shop has a password, this is used to determine if the current visitor has access.
SECTION 8 - AGE OF CONSENT
By using this site, you represent that you are at least the age of majority in your state or province of residence, or that you are the age of majority in your state or province of residence and you have given us your consent to allow any of your minor dependents to use this site.
If our store is acquired or merged with another company, your information may be transferred to the new owners so that we may continue to sell products to you.
QUESTIONS AND CONTACT INFORMATION
If you would like to: access, correct, amend or delete any personal information we have about you, register a complaint, or simply want more information contact our Privacy Compliance Officer at firstname.lastname@example.org or by mail at
[Re: Privacy Compliance Officer]
9 Kilmer Ct Edison NJ 08817
Technical Pro’s history traces back to 1971 with a retail electronics store in the South Bronx section of New York. In an era when Brooklyn was distilling beer and New York baseball was more than just a sport.
As the word got out that these guys really knew their stuff about audio and entertainment systems, their small store in the Bronx, began to thrive. Having a keen eye for innovative designs, and a deep rooted passion for music, they saw a void in the audio market.
Performance of audio equipment fell miserably short of customer’s expectations - real professional products were simply not being offered to the average consumer. Rather than selling other company’s “cookie cutter” product, they realized that the only viable approach was to start from the ground up, and totally redesign audio product with the end user in mind.
While they were turning their passion for sound into a reality, they had no idea what they were starting would eventually become one of the industry’s most respected and innovative audio brands. Their unprecedented approach to sound reproduction came much closer to the essence and emotional impact of live music and won immediate acclaim. The quest for better sound was on.
1990 Technical Pro began wholesale its product to other retailers, operating out of its own store on Delancey Street. Word spread. Retailers began flocking in. Eventually, the demand for product made it impossible to fulfill orders out of their retail location. The time to expand to the next level had arrived.
2010 and beyond: Never resting on their laurels, Technical Pro expanded into pro, sound-stage and portable audio, with the same approach they’ve used from the beginning – offer superior sound and innovative features to anyone who shares their passion for music, from consumer to professional.
Click here to download a copy of this products Manual
It is great to be able to copy your music onto an SD card for your phone or onto an MP3 player. You can take your entire music collection with you wherever you go. For DJs and bar owners, that handy little piece of storage is a Godsend. However, the sound quality you get out of plugging your memory stick or card into a stereo just won't cut it.
You need to put the music through an amplifier before it gets out of the speakers. Sound behaves differently when it travels through the air out of speakers than it does when it is delivered to headphones along a wire. The high notes and deep base of your music travel as waves at different speeds and they react differently over distance and through obstacles, so you need to adjust the music through an equalizer. You need an integrated amplifier with an equalizer.
|Dual 1/4" mic inputs|

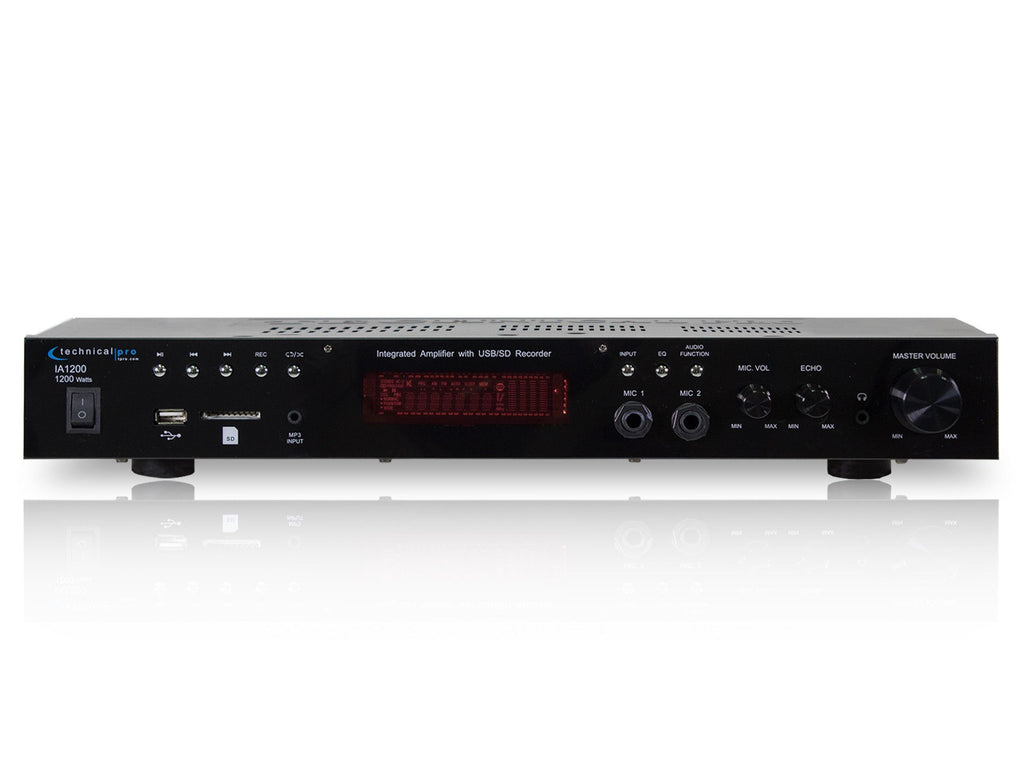

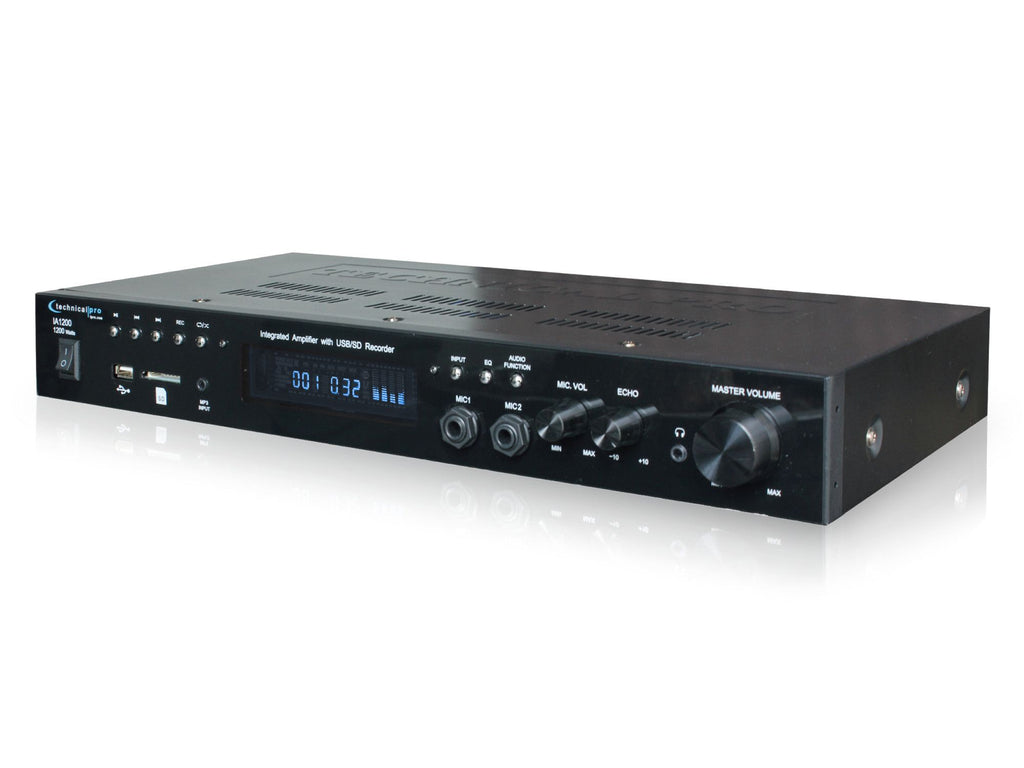

The IA1200 integrated amplifier is a sleek black piece of kit that looks cool and kicks out volume effortlessly. The unit has a central display panel flanked by button and dial controls on its face. The display shows fluorescent blue lettering and includes a dynamic equalizer output gauge. The control panel features an unmissable On/Off switch to the left hand side of the controls and a large volume dial completing the right-hand side controls. All dials are in charcoal gray-tinted brushed metal and include controls for bass, treble, and balance. All the buttons on the front are small, round, and chromed.
The unit has input channels on its faceplate that include a USB port, an SD card slot, and an MP3 input jack. There are also two mic input sockets and an earphone output socket on the right-hand side of the front control panel. You can connect to other sources via the connectors at the back of the unit. These include an AUX connector and two sets of RCA sockets. Output connectors on the back include two push button speaker sockets and a set of RCA sockets for Record Line Out. You can record from the input sockets on the back of the unit onto the media connected to the sockets on the front control panel, plus the RCA output sockets on the back of the amp.
The amplifier gives 1,200 Watts of peak power. Its frequency response rate is between 20 Hertz and 20 kiloHertz, which is the standard range of human hearing. This is a shelf unit and would be an attractive addition to any home music system as well as being suitable to form part of professional systems.
|Dimensions||L 17" x W 8" x H 3"|
|Peak Power||1200 Watts|
|Inputs||RCA (2 audio sources), USB, SD Card, AUX (32 GB Max)|
|Output||Push Button (2 loudspeakers), RCA (Record Line Out)|
|Frequency Response||20Hz - 20KHz|
At Technical Pro sound is our passion. Nowhere is this more apparent than in our line of professional sound amplifiers. Each amplifier is built to deliver vibrant, full-bodied audio straight to your speakers. At your home or business, Technical Pro amplifiers give you the ultimate listening experience at prices that can’t be matched.
This product is built with the same quality found in all Technical Pro equipment ensuring it follows you from gig to gig over an extended lifespan. We stand by our work and every Technical Pro product comes with a one year warranty.
